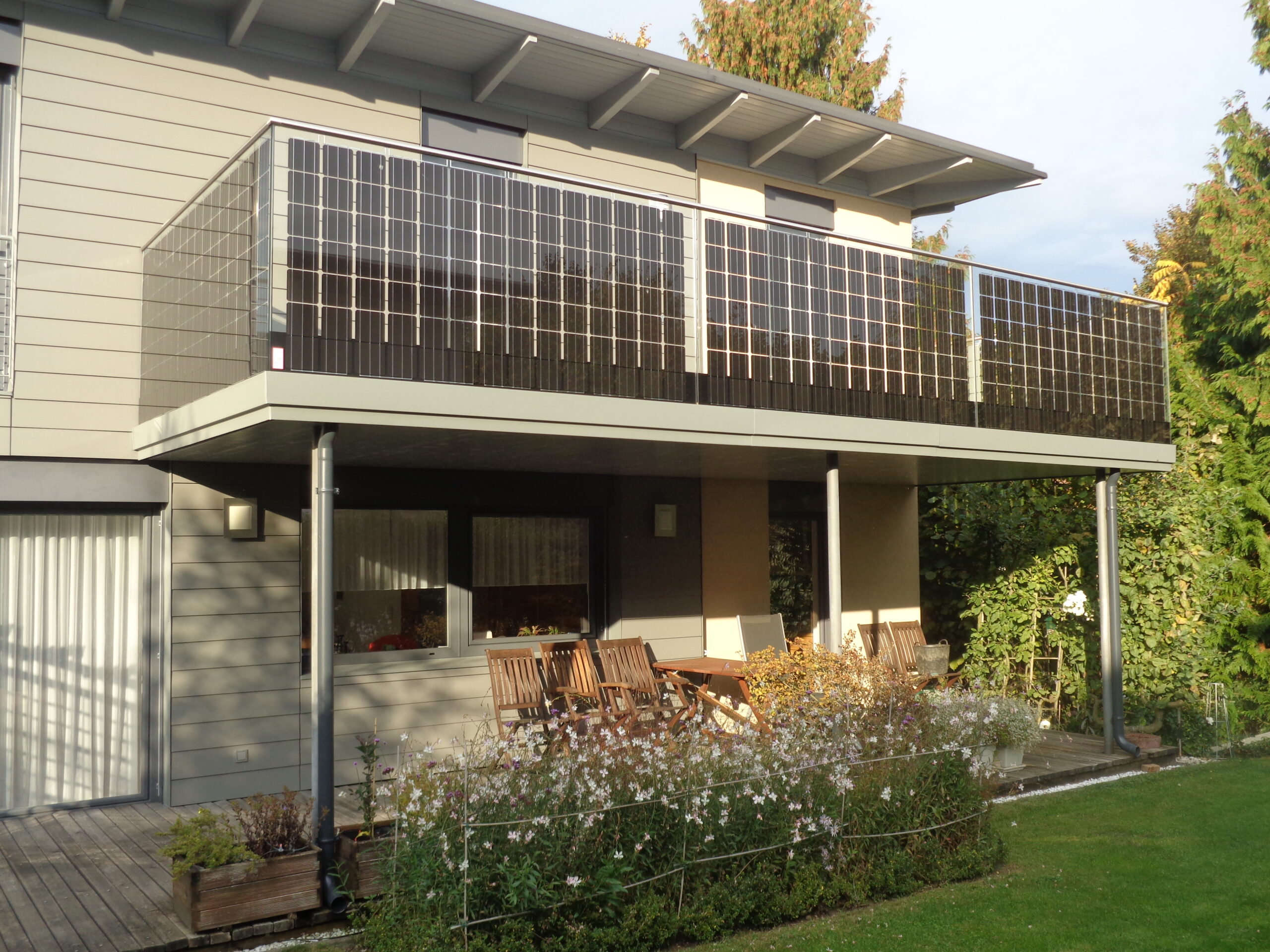

Balcony glazing


INFORMATIONS
about your request
TECHNICAL DATA


INFORMATIONS ABOUT INSTALLATION
Mounting options:
The substructure and assembly must be carried out by the customer, whereby for mounting a balcony glazing with photovoltaics there are different possibilities. Following are listed three different possibilities:
1) upstream balcony
Mounting in U-profile ↓



2) soil profile
According to static requirements higher glass thickness is needed ↓




3) Clamps
Mounting with clamps at the glass edges
with glass drilling ↓

without glass drilling ↓



Cabeling / connection detail:
At the bottom
e.g. soil profile ↓

At the back
e.g. upstream balcony ↓

At the top
e.g. hidden in the handrail ↓
